GBS Cerberus product family complying with SDIP 27 GBS TEMPEST & Service GmbH

The GBS Cerberus product series comprises eavesdropping-secure systems by GBS according to SDIP 27 Level A, which have been certified by the BSI for processing classified.

Cerberus products are developed and manufactured by GBS according to the ISO 9001 standard, and each system is emission tested and is in this context also CE certified.

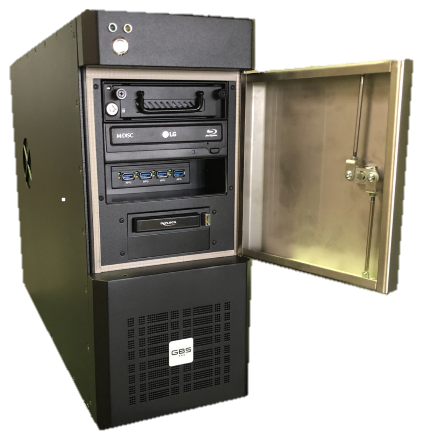

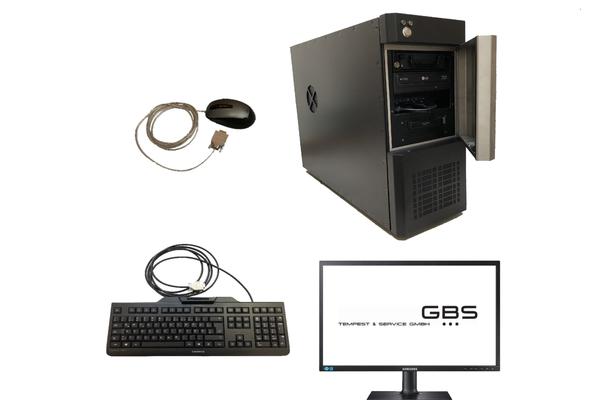

Emission-security certified by BSI Workstation complying with SDIP 27 Level A

  • Tower chassis with lockable TEMPEST front cover
  • Intel Core i7-7700 (8. Gen. Kaby Lake)
  • 4,2 GHz, 8GB RAM (expandable to 64GB), 2 TB SSHD
  • 24" display with special EMC panel technology
  • Optical USB mouse
Download

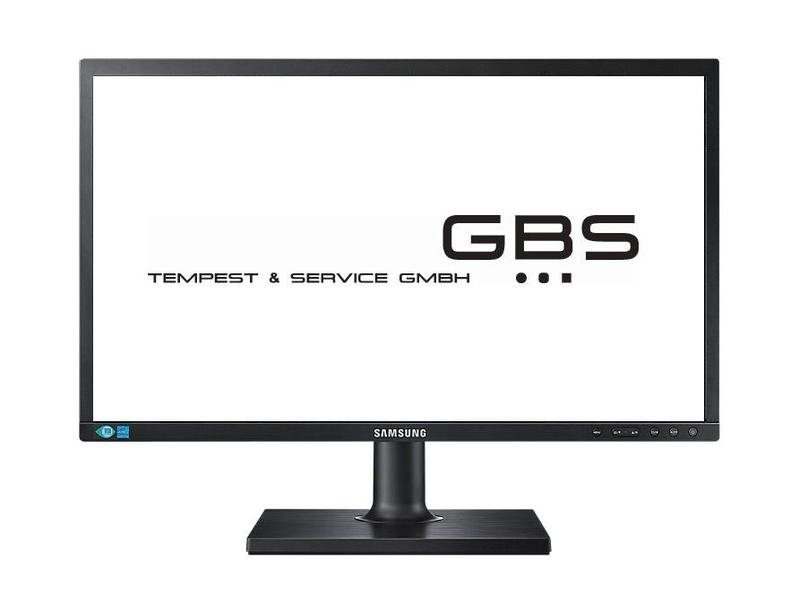

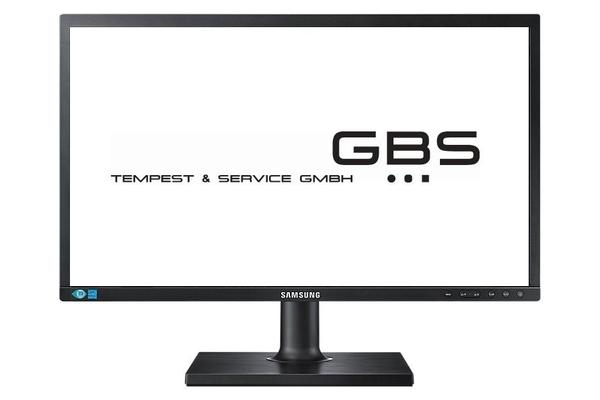

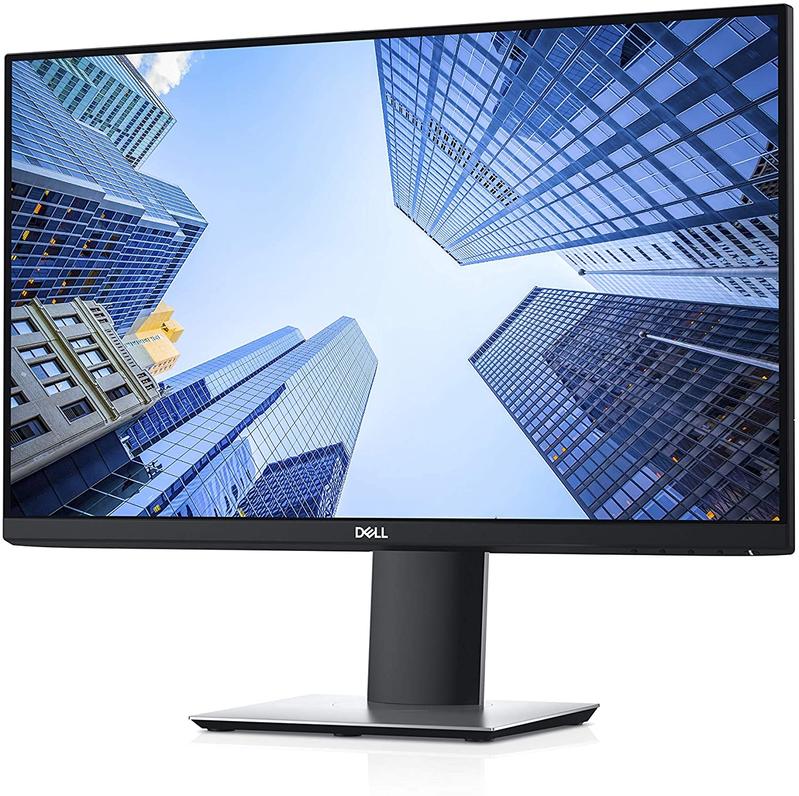

Emission-security certified by BSI Cerberus 24" display complying with SDIP 27 Level A

  • IPS-LED display
  • Display size: 24“ , native resolution: 1920 x 1200 pixels
  • Aspect ratio: 16:10
  • Response time:  4 ms
  • Luminance: 250 cd/m2
  • Contrast:  1000:1 (static); Mega DCR (dynamic)
  • Available colours: 16,7 million
  • Inputs: D-Sub, DVI, DisplayPort
  • Pivot function

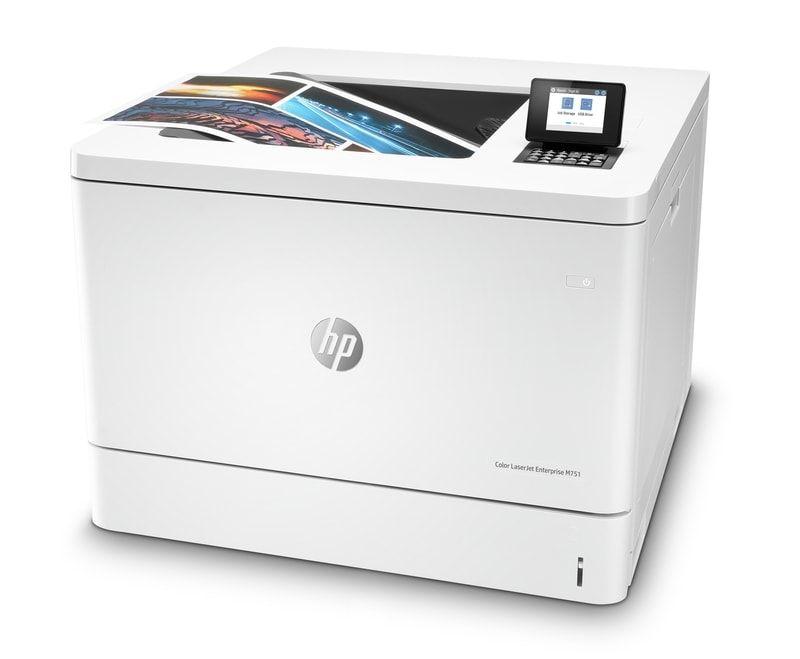

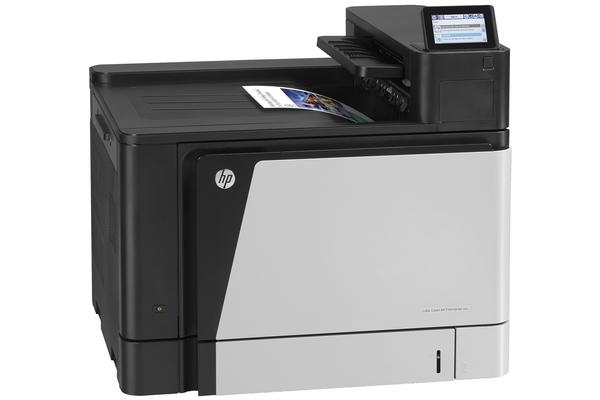

Emission-security certified by BSI Cerberus printer TA2035 complying with SDIP 27 Level A

BSI Cerberus printer TA2035 complying with SDIP 27 Level A
  • Print speed (b/w, ISO A4): Up to 30 pages per minute
  • Print quality optimal (b/w): Up to 600 x 600 dpi
  • Connectivity: USB 2.0, parallel port
  • Compatible operating systems: Prepared for Windows 7 (some functions may be unavailable), Windows Vista (32 bit/64 bit), Microsoft Windows XP (32 bit/64 bit), UNIX, Linux
Data sheet Cerberus printer

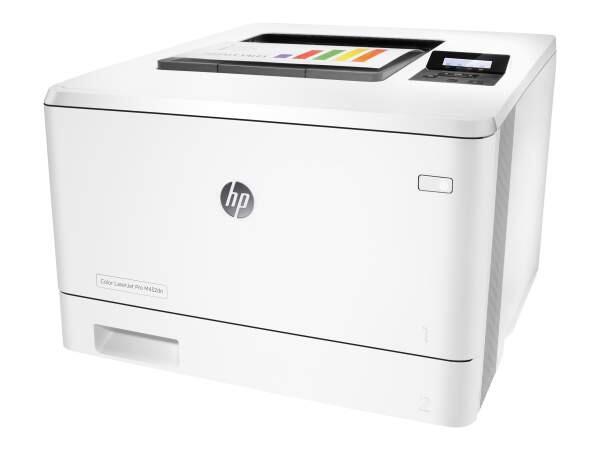

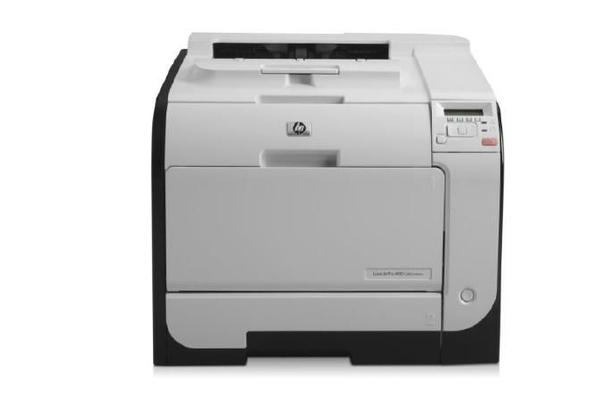

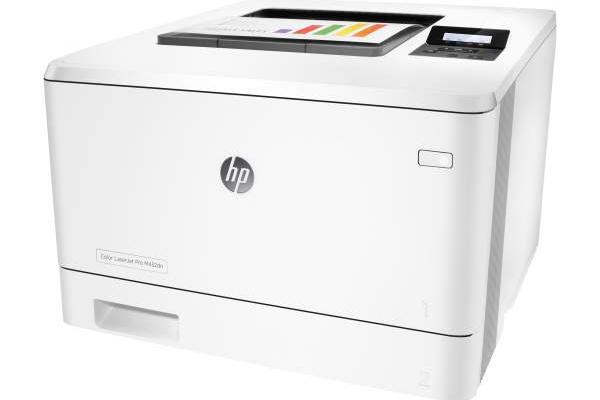

Emission-security certified by BSI Cerberus printer TA-451 complying with SDIP 27 Level A

BSI Cerberus printer TA-451 complying with SDIP 27 Level A
  • Print speed: Up to 21 pages per minute, letter size
  • Print resolution: Up to 600 x 600 dpi
  • Optional interface: LWL 100Base-FX ST adapter; TEMPEST D-Sub 9 Hi-Speed USB 2.0
  • Client operating system: Windows 8; Windows 7 (32/64 Bit); Windows Vista(32/64 Bit); Windows Server 2008 (32/64 Bit); Windows Server 2003 (32 Bit) (SP3 or higher); Mac OS X v10.5, v10.6; Linux; Unix
Data sheet Cerberus printer

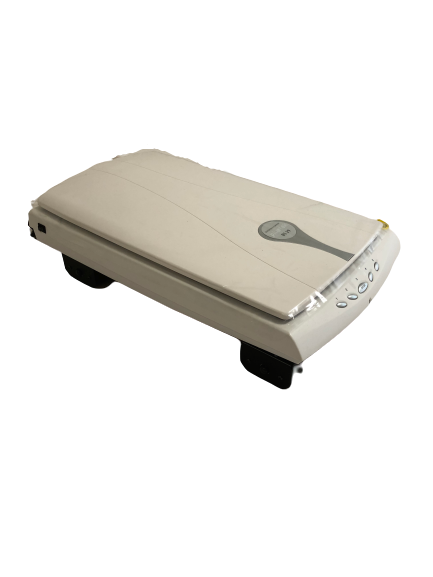

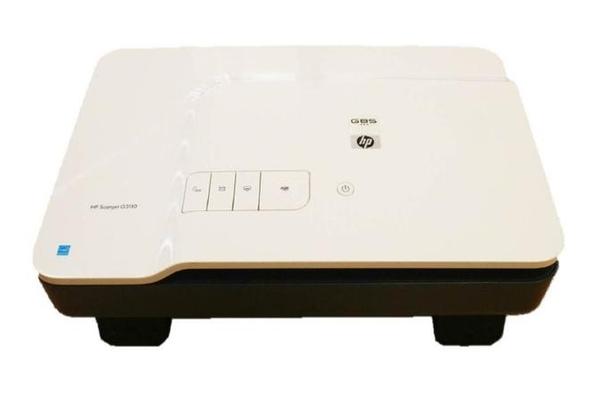

Emission-security certified by BSI Cerberus Scanner TA-G3110 complying with SDIP 27 Level A

BSI Cerberus Scanner TA-G3110 complying with SDIP 27 Level A
  • Scan speed:
  • Scan resolution: Up to 4.800 x 9.600 dpi
  • Interface: TEMPEST D-Sub 9 Hi-Speed USB 2.0
  • Compatible operating systems: Windows 8; Windows 7; Windows Vista; Windows XP (32-bit and 64-bit), Windows 2000; Mac OS X v10.6, Lion and Mountain Lion
Data sheet Cerberus Scanner

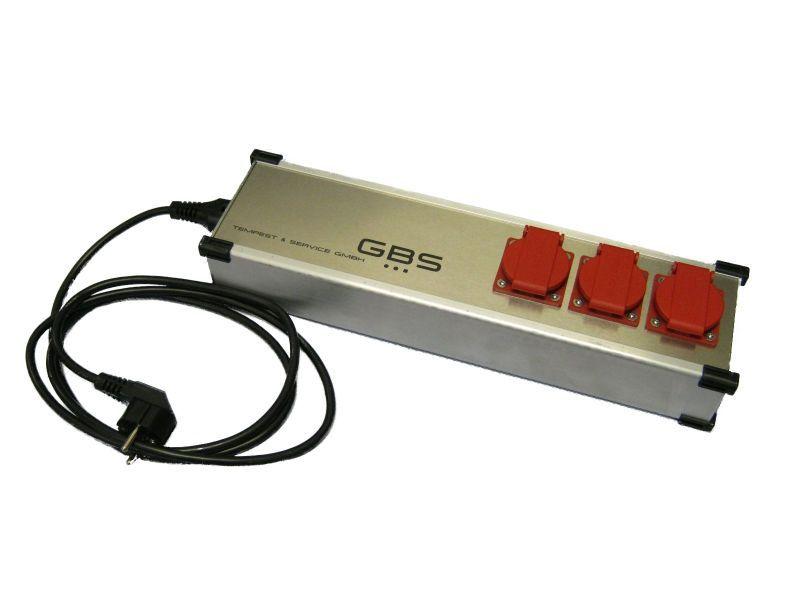

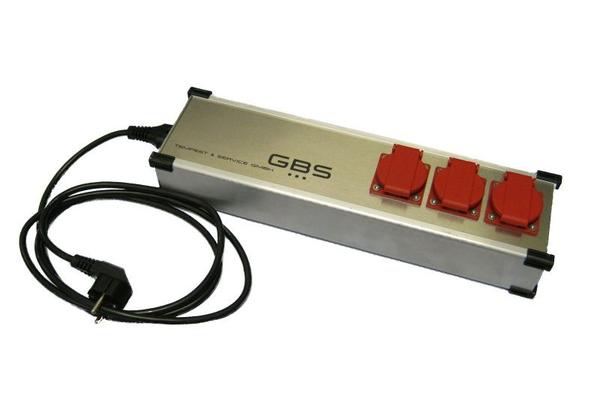

TEMPEST Universal Power Supply Filter

  • Operating voltage: Suitable for all country specific voltages, e.g. 110 VAC, 230 VAC
  • Rated current: 6 A @ 40°C max.; max. 660 W / 110 V; max. 1380 W / 230 V
  • Leakage current: 0.44 mA @ 230 VAC, 50 Hz
  • Protection: Class 1 according to IEC/EN 61140 (Protective earth)
Download
